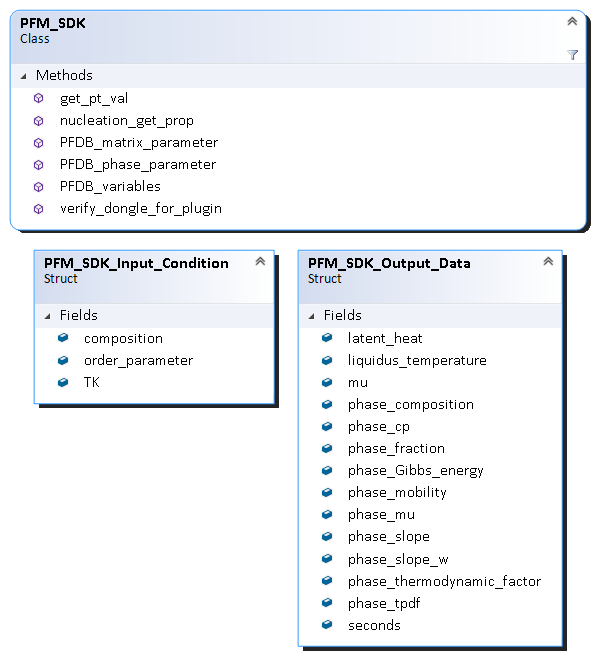

PanDataNet/PanEngine API for Phase Field Model. More...

#include <pfm_sdk.h>

Public Member Functions
virtual int	PFDB_variables (PFM_SDK_Variables variables, char msg)=0
	To extract the all the SDK variables defined in the current plugin. More...

virtual int	PFDB_matrix_parameter (PFM_SDK_Variables variables, const char tabletype, const char parameter, double value, char *msg)=0
	To extract a PFDB parameter of the matrix phase. More...

virtual int	PFDB_phase_parameter (PFM_SDK_Variables variables, const char phasename, const char tabletype, const char parameter, double value, char msg)=0
	To extract a PFDB parameter of a precipitate phase. More...

virtual int	PFDB_matrix_parameter_needs_update (const char tabletype, const char parameter, int needs_update, char msg)=0
	To check if a specific matrix parameter needs a update. Typically, a parameter needs an update if it is function of SDK variables that evolves with time. More...

virtual int	PFDB_phase_parameter_needs_update (const char phasename, const char tabletype, const char parameter, int needs_update, char *msg)=0
	To check if a parameter of precipitate phase needs a update. Typically, a parameter needs an update if it is function of SDK variables that evolves with time. More...

virtual int	PFDB_isexist_matrix (const char tabletype, const char parameter)=0
	To check whether a parameter is defined in the matrix phase in the input *.pfdb file. More...

virtual int	PFDB_isexist_phase (const char phasename, const char tabletype, const char *parameter)=0
	To check whether a parameter (of a precipitate phase) is defined in the matrix phase in the input *.pfdb file. More...

virtual int	PFDB_expression_value (PFM_SDK_Variables variables, const char expression, double *value)=0
	To evaluate a mathematical expression that depends on the SDK variables. More...

virtual void	get_pt_val (int thread_id, int engine_id, PFM_SDK_Input_Condition input, PFM_SDK_Output_Data output, char *msg, int m_panengine_mode=0)=0

virtual void	get_pt_val_by_global (PFM_SDK_Input_Condition input, PFM_SDK_Output_Data output, char *msg, bool no_self_check=false)=0

virtual PFM_SDK_Protocal	get_phase_name_protocol (char *msg)=0

virtual PFM_SDK_Protocal	get_comp_name_protocol (char *msg)=0

virtual void	update_comp_name_protocal (PFM_SDK_Protocal new_protocal, char msg)=0

virtual int	get_num_threads ()=0

virtual void	get_cal_condition (PFM_SDK_Input_Condition *state, int engine_id)=0

virtual void	get_phase_names_by_initial_condition (char *&phase_names, size_t n_names, int engine_id, char *msg)=0

virtual void	statistic_calc_cnt (int new_point_cnt, int reused_point_cnt)=0
	Get counts of newly calculated points and reused points. More...

virtual void	file_save_sdk_intermediate (int *tot_sdk_file_size_KB)=0
	Save intermedate files (binary fromat) and get the totla size of sdk intermediate files. The intermediate files are saved by SDK descontructor at the end of simulation. However, users are encouraged to save intermediate files during simulation. More...

virtual bool	nucleation_define_user (PF_ARGS m_args, char msg, bool single_thread=false)=0
	Initialize SDK to calculate nucleation related properties. More...

virtual bool	nucleation_get_prop (PFM_SDK_Input_Condition in, PFM_SDK_Output_Data out, int thread_id, char *msg, int m_engine_mode=0)=0
	Get precipitate composition, precipiate driving force and matrix mobility. More...

virtual bool	get_line_compound_info (int phase_id)=0
	Get line compound info for a phase. More...

virtual void	nucleation_file_save_sdk_intermediate (int *tot_sdk_file_size_KB)=0
	Save intermedate files (binary fromat) and get the totla size of sdk intermediate files. The intermediate files are saved by SDK descontructor at the end of simulation. However, users are encouraged to save intermediate files during simulation. More...

virtual shared_ptr< P_Point >	debug_get_cal_pt (int thread_id, int engine_id)=0
	Get a copy of the PanEngine calculation point object. The returned object can be used to debug model calculations. More...

virtual int	verify_dongle_for_plugin (const char plugin_name, char msg)=0
	To verify the dongle information for user's plugin. More...

Detailed Description

PanDataNet/PanEngine API for Phase Field Model.

Member Function Documentation

◆ PFDB_variables()

virtual int PFM_SDK::PFDB_variables	(	PFM_SDK_Variables *	variables,
		char *	msg
	)

pure virtual

To extract the all the SDK variables defined in the current plugin.

Parameters

[out]	variables	To store the SDK variables with their initial values.
[out]	msg	To store the error message if any

Returns: 0 : Success.
-1 : Error.

◆ PFDB_matrix_parameter()

virtual int PFM_SDK::PFDB_matrix_parameter	(	PFM_SDK_Variables *	variables,
		const char *	tabletype,
		const char *	parameter,
		double *	value,
		char *	msg
	)

pure virtual

To extract a PFDB parameter of the matrix phase.

Parameters

[in]	variables	SDK variables and their values.
[in]	tabletype	The type of the parameter table. (eg: phase_field_general, custom, stiffness_tensor, etc ...)
[in]	parameter	The name/type of the parameter. (eg: Chemical_Gradient_Factor, Interface_Width, etc ...)
[out]	value	The value of the parameter.
[out]	msg	Error message if any.

Returns: 0 : Success.
-1 : Error.

◆ PFDB_phase_parameter()

virtual int PFM_SDK::PFDB_phase_parameter	(	PFM_SDK_Variables *	variables,
		const char *	phasename,
		const char *	tabletype,
		const char *	parameter,
		double *	value,
		char *	msg
	)

pure virtual

To extract a PFDB parameter of a precipitate phase.

Parameters

[in]	variables	SDK variables and their values.
[in]	phasename	The name of the phase that the parameter belongs to.
[in]	tabletype	The type of the parameter table. (eg: custom, inter_phase, stiffness_tensor, etc ...)
[in]	parameter	The name/type of the parameter. (eg: Atomic_Spacing, Interfacial_Energy, etc ...)
[out]	value	The value of the parameter.
[out]	msg	Error message if any.

Returns: 0 : Success.
-1 : Error.

◆ PFDB_matrix_parameter_needs_update()

virtual int PFM_SDK::PFDB_matrix_parameter_needs_update	(	const char *	tabletype,
		const char *	parameter,
		int *	needs_update,
		char *	msg
	)

pure virtual

To check if a specific matrix parameter needs a update. Typically, a parameter needs an update if it is function of SDK variables that evolves with time.

Parameters

[in]	tabletype	The type of the parameter table. (eg: phase_field_general, custom, stiffness_tensor, etc ...)
[in]	parameter	The name/type of the parameter. (eg: Chemical_Gradient_Factor, Interface_Width, etc ...)
[out]	needs_update	1 : If the parameter needs to be updated, 0 : If these is no need to update.
[out]	msg	Error message if any.

Returns: 0 : Success.
-1 : Error.

◆ PFDB_phase_parameter_needs_update()

virtual int PFM_SDK::PFDB_phase_parameter_needs_update	(	const char *	phasename,
		const char *	tabletype,
		const char *	parameter,
		int *	needs_update,
		char *	msg
	)

pure virtual

To check if a parameter of precipitate phase needs a update. Typically, a parameter needs an update if it is function of SDK variables that evolves with time.

Parameters

[in]	phasename	The name of the phase that the parameter belongs to.
[in]	tabletype	The type of the parameter table. (eg: custom, inter_phase, stiffness_tensor, etc ...)
[in]	parameter	The name/type of the parameter. (eg: Atomic_Spacing, Interfacial_Energy, etc ...)
[out]	needs_update	1 : If the parameter needs to be updated, 0 : If these is no need to update.
[out]	msg	Error message if any.

Returns: 0 : Success.
-1 : Error.

◆ PFDB_isexist_matrix()

virtual int PFM_SDK::PFDB_isexist_matrix	(	const char *	tabletype,
		const char *	parameter
	)

pure virtual

To check whether a parameter is defined in the matrix phase in the input *.pfdb file.

Parameters

[in]	tabletype	The type of the parameter table. (eg: phase_field_general, custom, stiffness_tensor, etc ...)
[in]	parameter	The name/type of the parameter. (eg: Chemical_Gradient_Factor, Interface_Width, etc ...)

Returns: 1 : Parameter exists in the input *.pfdb file.
-1 : Parameter does not exist in the input *.pfdb file.

◆ PFDB_isexist_phase()

virtual int PFM_SDK::PFDB_isexist_phase	(	const char *	phasename,
		const char *	tabletype,
		const char *	parameter
	)

pure virtual

To check whether a parameter (of a precipitate phase) is defined in the matrix phase in the input *.pfdb file.

Parameters

phasename	The name of the phase that the parameter belongs to.
tabletype	The type of the parameter table. (eg: custom, inter_phase, stiffness_tensor, etc ...)
parameter	The name/type of the parameter. (eg: Atomic_Spacing, Interfacial_Energy, etc ...)

Returns: 1 : Parameter exists in the input *.pfdb file.
-1 : Parameter does not exist in the input *.pfdb file.

◆ PFDB_expression_value()

virtual int PFM_SDK::PFDB_expression_value	(	PFM_SDK_Variables *	variables,
		const char *	expression,
		double *	value
	)

pure virtual

To evaluate a mathematical expression that depends on the SDK variables.

Parameters

[in]	variables	SDK variables and their values.
[in]	expression	Mathematical expression.
[out]	value	The value of the expression.

Returns: 0 : Success.
-1 : Error.

◆ get_pt_val()

virtual void PFM_SDK::get_pt_val	(	int	thread_id,
		int	engine_id,
		PFM_SDK_Input_Condition *	input,
		PFM_SDK_Output_Data *	output,
		char *	msg,
		int	m_panengine_mode = `0`
	)

pure virtual

Do a point calculation using an engine

Parameters

[in]	thread_id	the id of the thread (if the thread_id is beyong available number of thread, the first thread will be used). Use PFM_SDK::get_num_threads to get total number of threads
[in]	engine_id	the id of the engine in the selected thread. engine_id follows the rule: (1) When only one phase is active, for example in spinodal decomposition, engine_id should always be 0; (2) When multiple phases are active, for example in precipitation with 1 matrix phase and 1 precipitate phases, the first two engines (engine_id = 0, 1) are for individual phase (mapping between phase name and engine_id is available through PFM_SDK::get_phase_name_protocol). The last engine (engine_id = 2) is for phase equilibiruim. If incorrect number of engine id is used, an error message "Error: Invalid engine id" will be returned without doing any calculation.
[in]	input	the point calculation condition
[in]	m_panengine_mode	(default = 0) 0: try to reuse calculated points; 1: disregarding calculated points
[out]	output	the properties from this calculation
[out]	msg	the message

Returns: void

◆ get_pt_val_by_global()

virtual void PFM_SDK::get_pt_val_by_global	(	PFM_SDK_Input_Condition *	input,
		PFM_SDK_Output_Data *	output,
		char *	msg,
		bool	no_self_check = `false`
	)

pure virtual

Do a point calculation using global method, disregarding calculated points. When PFM_SDK::get_pt_val method gives parallel tangent phase equilibrium (for KKS model), use this method to get common tangent phase equilibrium,

Parameters

[in]	input	the point calculation condition
[in]	no_self_check	(default = false) self-checking is disabled or enabled. Self-chekcing of calculation result should be disabled when doing cooling simulation, since the global calculation may give unexpected phases.
[out]	output	the properties from this calculation
[out]	msg	the message

Returns: void

◆ get_phase_name_protocol()

virtual PFM_SDK_Protocal PFM_SDK::get_phase_name_protocol ( char * msg )

pure virtual

Get protocol of phase names: order of phase names used by SDK. The order of phases in PFM_SDK_Input_Condition and PFM_SDK_Output_Data should be consistent with this protocol

Returns: protocol(order) of phase names used by SDK

◆ get_comp_name_protocol()

virtual PFM_SDK_Protocal PFM_SDK::get_comp_name_protocol ( char * msg )

pure virtual

Get protocol of element names: order of element names used by SDK. The order of component in PFM_SDK_Input_Condition and PFM_SDK_Output_Data should be consistent with this protocol

Returns: protocol(order) of component names used by SDK

◆ update_comp_name_protocal()

virtual void PFM_SDK::update_comp_name_protocal	(	PFM_SDK_Protocal *	new_protocal,
		char *	msg
	)

pure virtual

Update protocol of element names(order of element names) used by SDK.

Parameters

[in]	new_protocal	the new protocol of component order
[out]	msg	the message

Returns: void

◆ get_num_threads()

virtual int PFM_SDK::get_num_threads ( )

pure virtual

Get total number of available threads of engine

Returns: the number of available threads

◆ get_cal_condition()

virtual void PFM_SDK::get_cal_condition	(	PFM_SDK_Input_Condition *	state,
		int	engine_id
	)

pure virtual

Get the latest cacluation condition of engine with id of engine_id, in the first thread

Parameters

[out]	state	the calculation condition (state) from the last calculation
[in]	engine_id	the id of the engine where the state is queried

◆ get_phase_names_by_initial_condition()

virtual void PFM_SDK::get_phase_names_by_initial_condition	(	char **&	phase_names,
		size_t *	n_names,
		int	engine_id,
		char *	msg
	)

pure virtual

Get all phaes names from initially global point calculation. This is important when determine if the initial condition is proper for a model. For example in spinodal decomposition, phase number should be at least 2 and all names should be identical. In precipitation, at least two different phase names should be there.

Parameters

[in]	engine_id	the id of the engine where phase information is queired
[out]	phase_names	the array of phase names
[out]	n_names	the number of phases
[out]	msg	the message

Returns: void

◆ statistic_calc_cnt()

virtual void PFM_SDK::statistic_calc_cnt	(	int *	new_point_cnt,
		int *	reused_point_cnt
	)

pure virtual

Get counts of newly calculated points and reused points.

Note: Statistics of SDK

Parameters

[out]	new_point_cnt	the count of newly calculated points
[out]	reused_point_cnt	the count of reused points

Returns: void

◆ file_save_sdk_intermediate()

virtual void PFM_SDK::file_save_sdk_intermediate ( int * tot_sdk_file_size_KB )

pure virtual

Save intermedate files (binary fromat) and get the totla size of sdk intermediate files. The intermediate files are saved by SDK descontructor at the end of simulation. However, users are encouraged to save intermediate files during simulation.

Note: File operation of SDK

Parameters

[out] tot_sdk_file_size_KB the total size of sdk intermediate files

Returns: void

◆ nucleation_define_user()

virtual bool PFM_SDK::nucleation_define_user	(	PF_ARGS *	m_args,
		char *	msg,
		bool	single_thread = `false`
	)

pure virtual

Initialize SDK to calculate nucleation related properties.

Note: For Nucleation model

Parameters

[out]	msg	the message from the initializer
[in]	m_args	the arguments from phase field module
[in]	single_thread	a boolean controllin tag which decides whether to use single thread for nucleation model (default is false). This option is useful when mean-field nucleation model is applied

◆ nucleation_get_prop()

virtual bool PFM_SDK::nucleation_get_prop	(	PFM_SDK_Input_Condition *	in,
		PFM_SDK_Output_Data *	out,
		int	thread_id,
		char *	msg,
		int	m_engine_mode = `0`
	)

pure virtual

Get precipitate composition, precipiate driving force and matrix mobility.

Parameters

[in]	in	the input of calculation
[out]	out	the output of calculation
[in]	thread_id	the id of thread for this calculation
[out]	msg	the message from the function
[out]	m_engine_mode	(default = 0) 0: try to reuse calculated points; 1: disregarding calculated points

◆ get_line_compound_info()

virtual bool PFM_SDK::get_line_compound_info ( int phase_id )

pure virtual

Get line compound info for a phase.

Parameters

[in] phase_id the id of phase according to protocol

Returns: true if it is line compound

◆ nucleation_file_save_sdk_intermediate()

virtual void PFM_SDK::nucleation_file_save_sdk_intermediate ( int * tot_sdk_file_size_KB )

pure virtual

Save intermedate files (binary fromat) and get the totla size of sdk intermediate files. The intermediate files are saved by SDK descontructor at the end of simulation. However, users are encouraged to save intermediate files during simulation.

Note: For Nucleation model

Parameters

[out] tot_sdk_file_size_KB the total size of sdk intermediate files

Returns: void

◆ debug_get_cal_pt()

virtual shared_ptr< P_Point > PFM_SDK::debug_get_cal_pt	(	int	thread_id,
		int	engine_id
	)

pure virtual

Get a copy of the PanEngine calculation point object. The returned object can be used to debug model calculations.

Parameters

[in]	thread_id	the id of thread from which the calculation point comes
[in]	engine_id	the id of engine from which the calcualtion point comes return A copy of the PanEngine calculation point (P_Point) object

◆ verify_dongle_for_plugin()

virtual int PFM_SDK::verify_dongle_for_plugin	(	const char *	plugin_name,
		char *	msg
	)

pure virtual

To verify the dongle information for user's plugin.

Note: To verify the dongle information for user's plugin

Parameters

[in]	plugin_name	the name of the plugin
[in]	msg	error message if any

Returns: true for success and otherwise false

The documentation for this class was generated from the following file:

pfm_sdk.h

Public Member Functions

Detailed Description

Member Function Documentation

◆ PFDB_variables()

◆ PFDB_matrix_parameter()

◆ PFDB_phase_parameter()

◆ PFDB_matrix_parameter_needs_update()

◆ PFDB_phase_parameter_needs_update()

◆ PFDB_isexist_matrix()

◆ PFDB_isexist_phase()

◆ PFDB_expression_value()

◆ get_pt_val()

◆ get_pt_val_by_global()

◆ get_phase_name_protocol()

◆ get_comp_name_protocol()

◆ update_comp_name_protocal()

◆ get_num_threads()

◆ get_cal_condition()

◆ get_phase_names_by_initial_condition()

◆ statistic_calc_cnt()

◆ file_save_sdk_intermediate()

◆ nucleation_define_user()

◆ nucleation_get_prop()

◆ get_line_compound_info()

◆ nucleation_file_save_sdk_intermediate()

◆ debug_get_cal_pt()

◆ verify_dongle_for_plugin()
